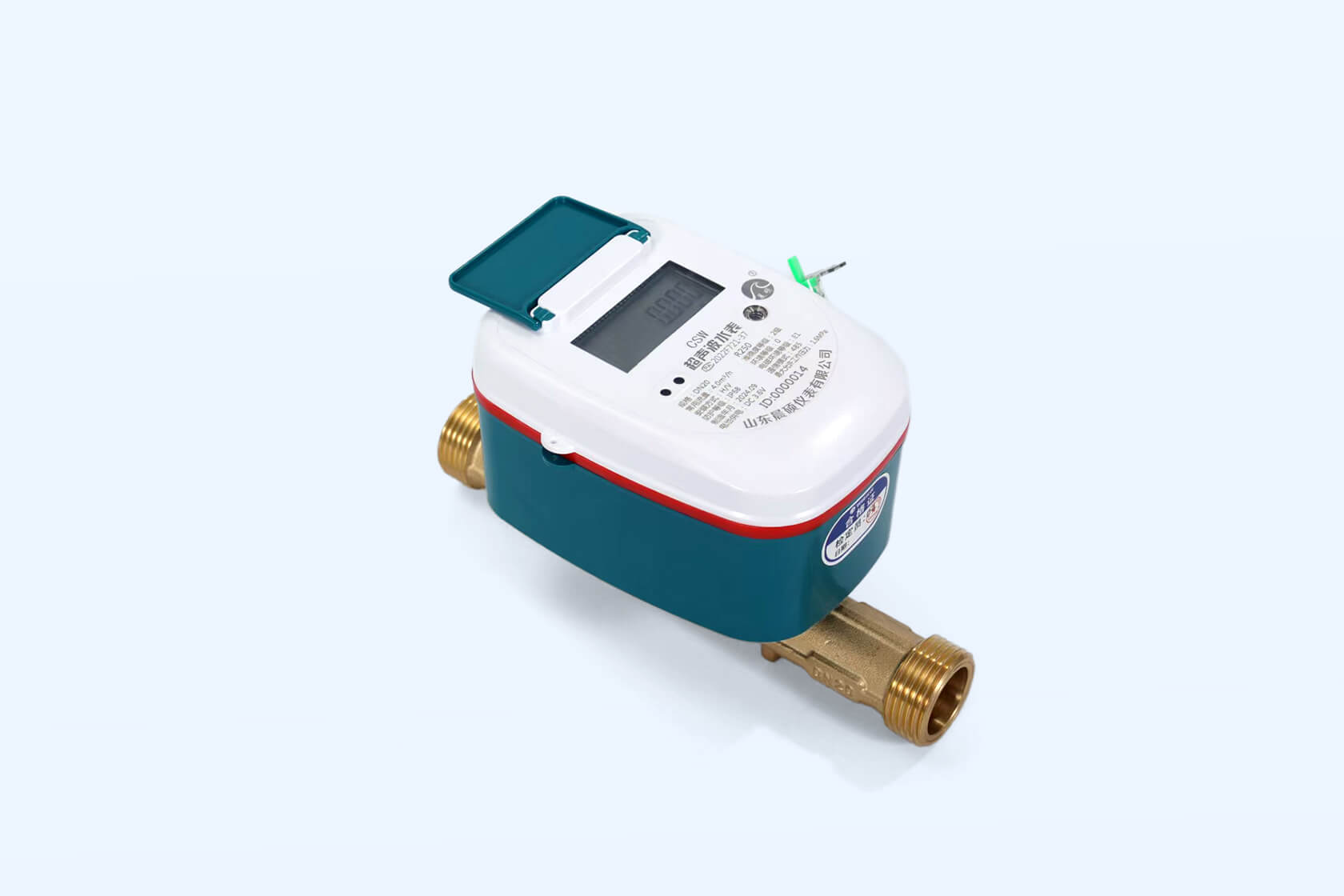

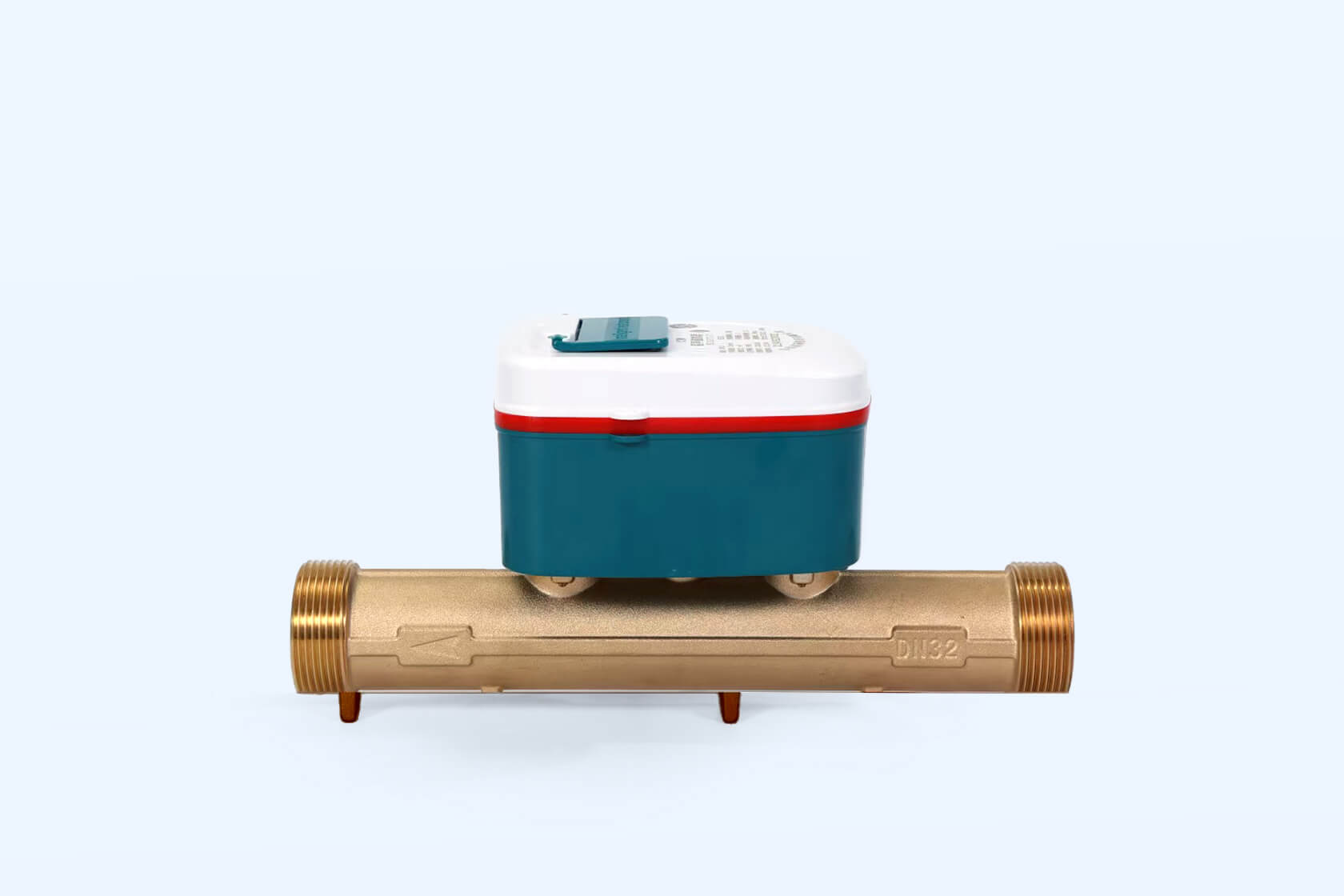

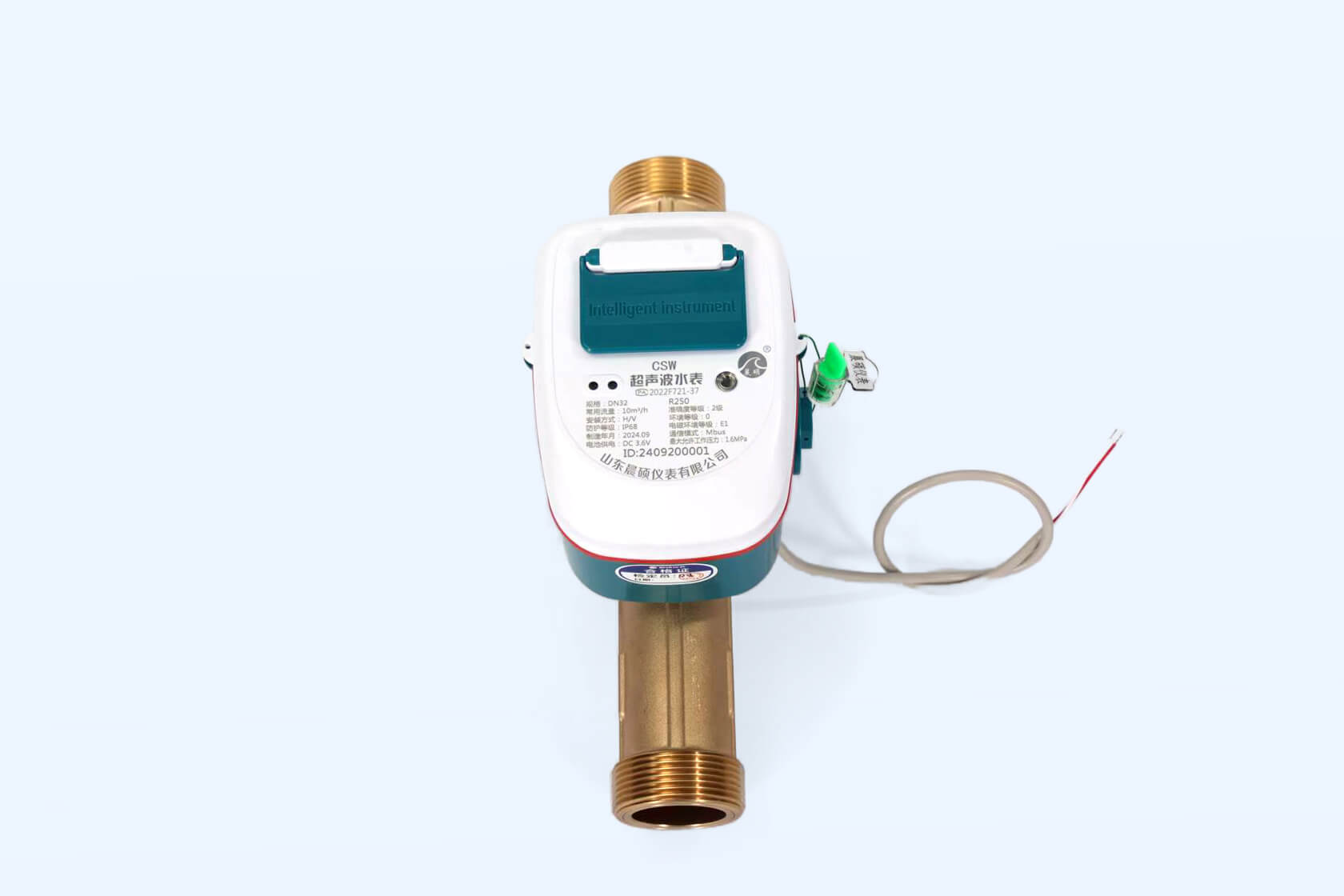

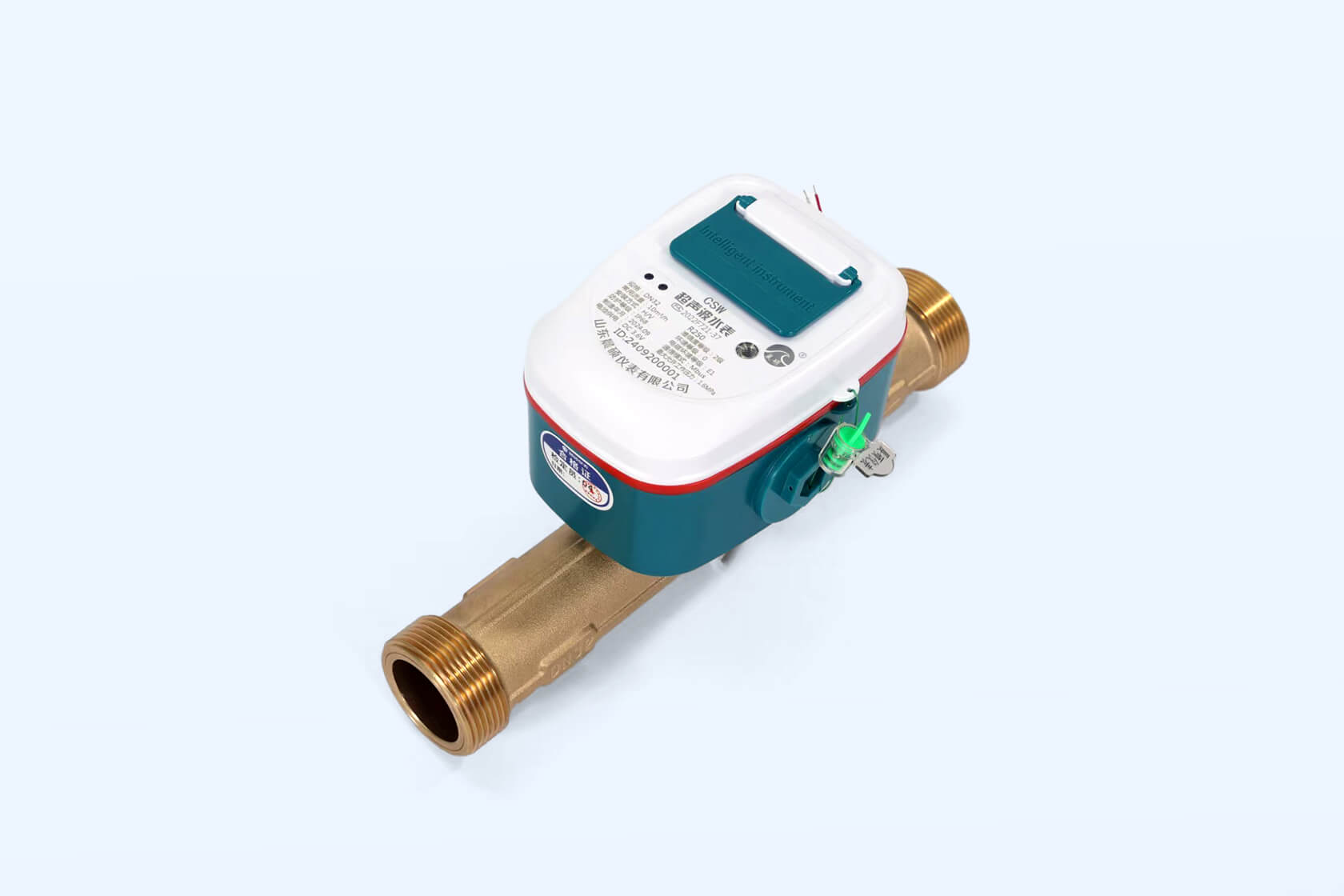

The ultrasonic water meter is a high-accuracy electronic flow meter leveraging the ultrasonic time-of-flight principle. It determines flow velocity by measuring the propagation time disparity of ultrasonic waves in the fluid. Contrasting with conventional mechanical water meters, its notable advantages include: absence of moving mechanical components, broad turndown ratio, negligible pressure drop, superior precision, and extended operational life. It is particularly well-suited for intelligent water management systems, industrial metering applications, and district-level leakage monitoring.
High Accuracy: ±1% to ±2% error, better than mechanical meters (±2% to ±5%).
No Moving Parts: Wear-resistant, lifespan >15 years.
Wide Turndown Ratio (100:1 to 400:1): Measures tiny (e.g., drips) and large flows accurately.
Zero Pressure Loss: Straight-through design doesn’t affect pipeline pressure.
Smart Features: Remote reading, leak monitoring, cloud data management.
Key Technical Specifications
Basic Parameters
| Parameter | DN15-DN40 (Small Bore) | DN50-DN200 (Medium/Large Bore) | Remarks |
| Nominal Diameter (DN) | 15～40mm | 50～200mm | Flange/Thread Connection
|
| Measurement Principle | Ultrasonic Time-of-Flight | Ultrasonic Time-of-Flight | No Mechanical Impeller |
| Turndown Ratio （Q₃/Q₁） | 160:1～250:1 | 160:1～400:1 | (Mechanical Meters: Typically 80:1) |
| Accuracy Class | Class 2 | Class 2 | ±2% Error |
| Operating Temperature | 0.1-50°C (Cold Water) | 0.1-90°C (Hot Water Option) | High-Temp Models Customizable
|
| Operating Pressure | ≤1.6 MPa | ≤1.6 MPa | Higher pressure ratings available (customizable) |
| Pressure Loss | ≤0.15 MPa | ≤0.05 MPa | Low Pressure Drop |
| Ingress Protection (IP) Rating | IP68 | IP68 | Submersible Installation
|
Product Structure & Working Principle
